前一篇文章：《基于CSDN上 SGuniver_22的《Linux下c语言实验Websocket通讯 含客户端和服务器测试代码》的websocket聊天代码》 在此：， SGuniver_22的代码在此，为方便这里也提供 本地下载。
目标/需求是建立一个交友（特别是婚恋交友）网站， （市面上已有的如佳缘/百合/珍爱网的聊天功能似乎都不是很能用，不能令笔者满意， 所以改善这一情况有必要。我希望不用建一个单个的大网站，而希望按地域建各个分布众多的地方性网站，我（们）可以给各地站长提供服务 （免费的或付费的都有可能））。
为了最便于部署（希望每一个县市（地域）范围有人可以部署运营一个），本系统拟不采用数据库！
这里介绍聊天功能部分的开发。websocket服务器代码许可证拟采用GPL v2 or later，保留扩大许可证的权利。
最初版本只用了一个buffer，是否适用待观察。

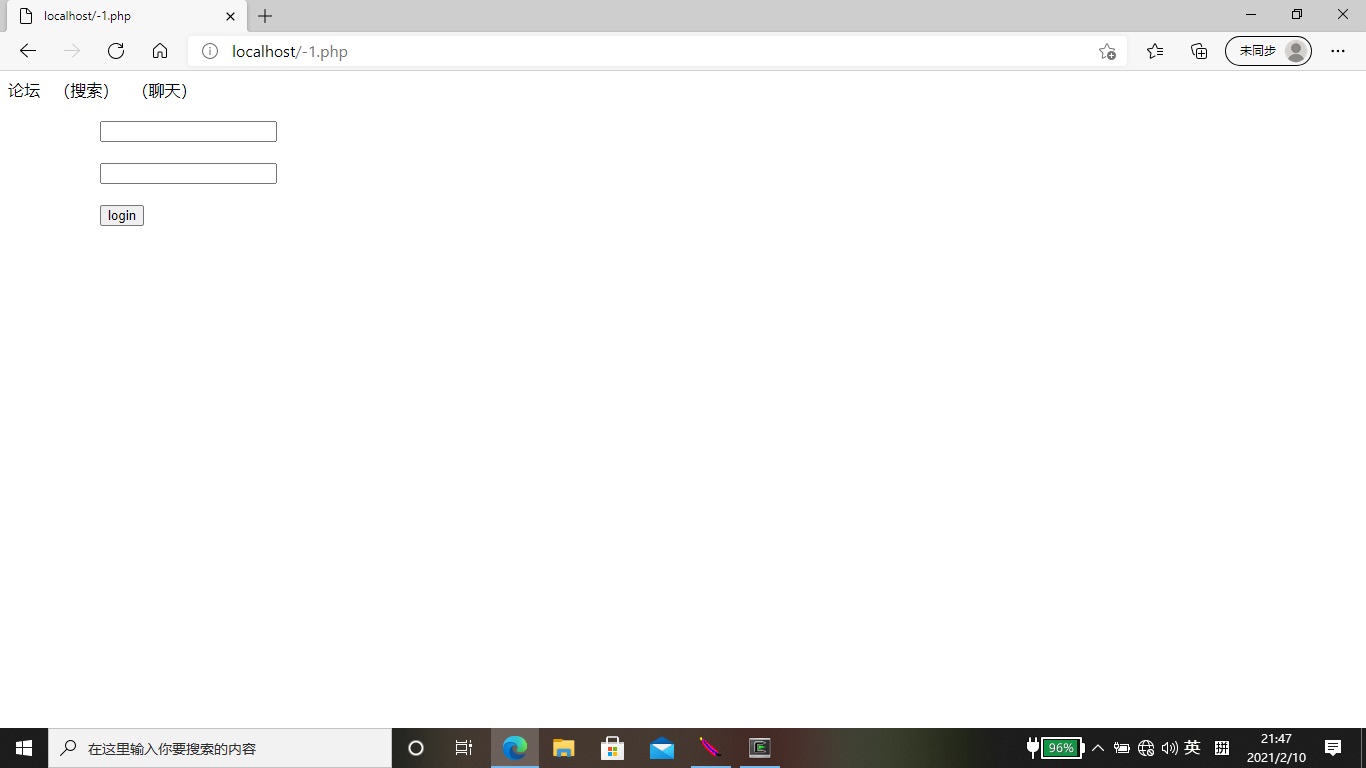

登录页面

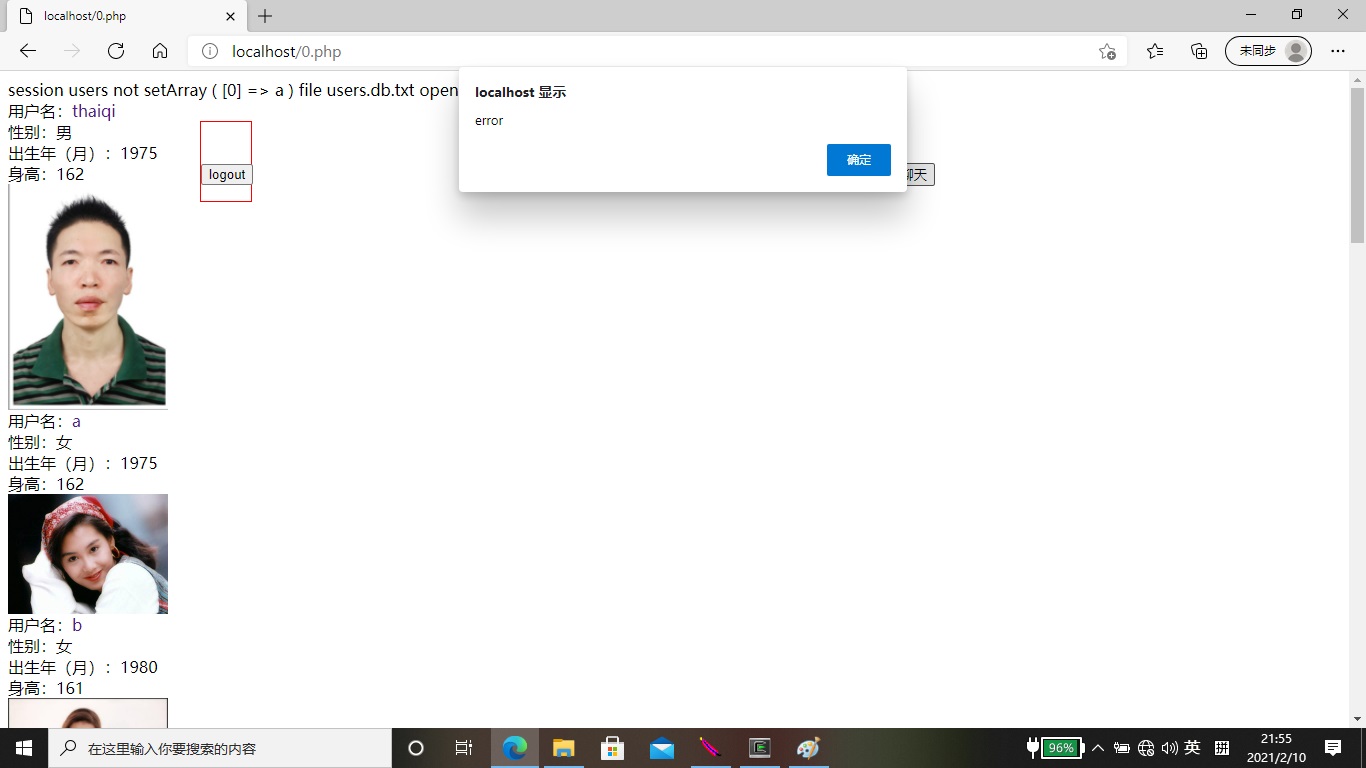

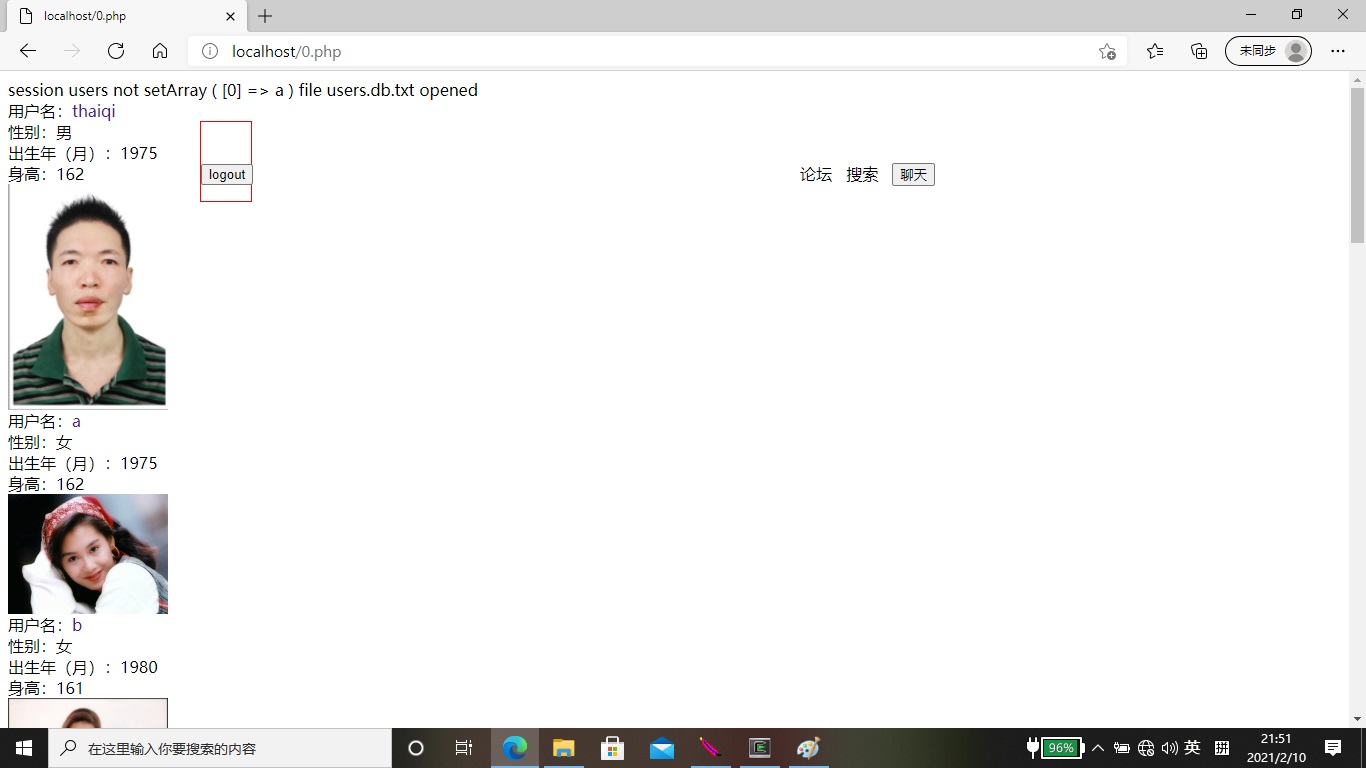

主（main）页面：
（1）显示快照所有注册者，（男女分别？）
（2）改写users.db.txt，记录在线用户
（3）虽然最好显示新刚注册者，但现为显示此时（或0点）注册者快照（snapshot），包括在线（刚才曾经在线）状态（和签名）
（4）打开一个main websocket，在未打开chat页时接收聊天邀请；（暂未）广播到其他用户窗口
（5）logout时做下面提到的注销动作
（6）关闭此页时：关闭此页websocket，应该不影响chat页面聊天

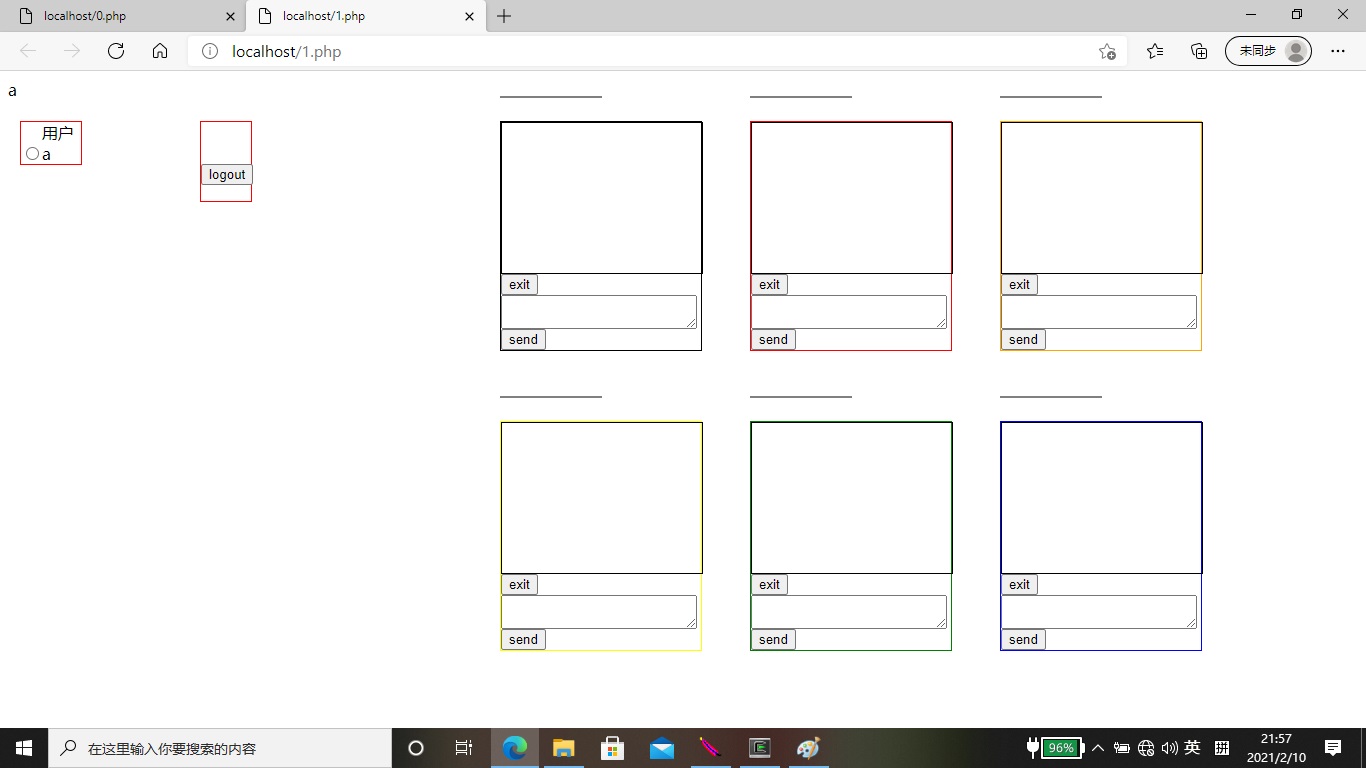

聊天（chat）页面：
（1）页面打开时打开一个master websocket
（2）在线用户区：即时增减
（3）点击send：
(i)如果没有data websocket，新打开一个；
(ii)peer标签或radio单选至少要有其一；（不能选自己作为聊天对象）
(iii)沿着此websocket发送和接收聊天信息
（4）点击quit/exit：
(i)关闭data websocket；
(ii)清空peer（对方）标签；
(iii)清空对话显示框；
(iv)清空输入框；
（5）关闭此页：关闭master/data websocket；
（6）之后别的用户所在的peer标签应处理
login:
logout:
(i)注销session
(ii)关闭websocket
(iii)在线用户减1
(iv)vec[]中移除fd（server代码中）
关闭网页：关闭websocket
网页：
（1）新建/打开
（2）后退
（3）前进
（4）关闭
（5）刷新
（6）（链接打开与）地址栏输入URL打开
聊天测试需求：
（1）（main页回退到login页，再前进，要正确处理）
（2）一个人最多与6个人同时聊天
（）
（） //TODO
（）
编译运行：
g++ -o test websocket_chat.cpp
./test 9001
(我测试服务器ip为192.168.64.132，所以下面1.php中建立websocket连接的代码为ws://192.168.64.132:9001)
websocket_chat.cpp:
/********************************************************************************************* * * Copyright (c) 2020-2021 SGuniver_22 & thaiqi (shudan75@sina.com) All Rights Reserved This program is free software; you can redistribute it and/or modify it under the terms of version 2 of the GNU General Public License as published by the Free Software Foundation. This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details. You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA. * * **********************************************************************************************/ #include#include #include #include #include #include #include #include #include #include #include #include #include #include #include #include #include #include #include using namespace std; #define MAX_EVENT_NUMBER 1000 #define BUFFER_SIZE 20*1024*1024 int try_analyze_buffer(unsigned char* buffer, int* p_begin, int in_amount, int sockfd); //==================== 加密方法 sha1哈希 ==================== typedef struct SHA1Context { uint32_t Message_Digest[5]; uint32_t Length_Low; uint32_t Length_High; uint8_t Message_Block[64]; int32_t Message_Block_Index; int32_t Computed; int32_t Corrupted; } SHA1Context; #define SHA1CircularShift(bits, word) ((((word) << (bits)) & 0xFFFFFFFF) | ((word) >> (32 - (bits)))) void SHA1ProcessMessageBlock(SHA1Context *context) { const uint32_t K[] = {0x5A827999, 0x6ED9EBA1, 0x8F1BBCDC, 0xCA62C1D6}; int32_t t; uint32_t temp; uint32_t W[80]; uint32_t A, B, C, D, E; for (t = 0; t < 16; t++) { W[t] = ((uint32_t)context->Message_Block[t * 4]) << 24; W[t] |= ((uint32_t)context->Message_Block[t * 4 + 1]) << 16; W[t] |= ((uint32_t)context->Message_Block[t * 4 + 2]) << 8; W[t] |= ((uint32_t)context->Message_Block[t * 4 + 3]); } for (t = 16; t < 80; t++) W[t] = SHA1CircularShift(1, W[t - 3] ^ W[t - 8] ^ W[t - 14] ^ W[t - 16]); A = context->Message_Digest[0]; B = context->Message_Digest[1]; C = context->Message_Digest[2]; D = context->Message_Digest[3]; E = context->Message_Digest[4]; for (t = 0; t < 20; t++) { temp = SHA1CircularShift(5, A) + ((B & C) | ((~B) & D)) + E + W[t] + K[0]; temp &= 0xFFFFFFFF; E = D; D = C; C = SHA1CircularShift(30, B); B = A; A = temp; } for (t = 20; t < 40; t++) { temp = SHA1CircularShift(5, A) + (B ^ C ^ D) + E + W[t] + K[1]; temp &= 0xFFFFFFFF; E = D; D = C; C = SHA1CircularShift(30, B); B = A; A = temp; } for (t = 40; t < 60; t++) { temp = SHA1CircularShift(5, A) + ((B & C) | (B & D) | (C & D)) + E + W[t] + K[2]; temp &= 0xFFFFFFFF; E = D; D = C; C = SHA1CircularShift(30, B); B = A; A = temp; } for (t = 60; t < 80; t++) { temp = SHA1CircularShift(5, A) + (B ^ C ^ D) + E + W[t] + K[3]; temp &= 0xFFFFFFFF; E = D; D = C; C = SHA1CircularShift(30, B); B = A; A = temp; } context->Message_Digest[0] = (context->Message_Digest[0] + A) & 0xFFFFFFFF; context->Message_Digest[1] = (context->Message_Digest[1] + B) & 0xFFFFFFFF; context->Message_Digest[2] = (context->Message_Digest[2] + C) & 0xFFFFFFFF; context->Message_Digest[3] = (context->Message_Digest[3] + D) & 0xFFFFFFFF; context->Message_Digest[4] = (context->Message_Digest[4] + E) & 0xFFFFFFFF; context->Message_Block_Index = 0; } void SHA1Reset(SHA1Context *context) { context->Length_Low = 0; context->Length_High = 0; context->Message_Block_Index = 0; context->Message_Digest[0] = 0x67452301; context->Message_Digest[1] = 0xEFCDAB89; context->Message_Digest[2] = 0x98BADCFE; context->Message_Digest[3] = 0x10325476; context->Message_Digest[4] = 0xC3D2E1F0; context->Computed = 0; context->Corrupted = 0; } void SHA1PadMessage(SHA1Context *context) { if (context->Message_Block_Index > 55) { context->Message_Block[context->Message_Block_Index++] = 0x80; while (context->Message_Block_Index < 64) context->Message_Block[context->Message_Block_Index++] = 0; SHA1ProcessMessageBlock(context); while (context->Message_Block_Index < 56) context->Message_Block[context->Message_Block_Index++] = 0; } else { context->Message_Block[context->Message_Block_Index++] = 0x80; while (context->Message_Block_Index < 56) context->Message_Block[context->Message_Block_Index++] = 0; } context->Message_Block[56] = (context->Length_High >> 24) & 0xFF; context->Message_Block[57] = (context->Length_High >> 16) & 0xFF; context->Message_Block[58] = (context->Length_High >> 8) & 0xFF; context->Message_Block[59] = (context->Length_High) & 0xFF; context->Message_Block[60] = (context->Length_Low >> 24) & 0xFF; context->Message_Block[61] = (context->Length_Low >> 16) & 0xFF; context->Message_Block[62] = (context->Length_Low >> 8) & 0xFF; context->Message_Block[63] = (context->Length_Low) & 0xFF; SHA1ProcessMessageBlock(context); } int32_t SHA1Result(SHA1Context *context) { if (context->Corrupted) { return 0; } if (!context->Computed) { SHA1PadMessage(context); context->Computed = 1; } return 1; } void SHA1Input(SHA1Context *context, const char *message_array, uint32_t length) { if (!length) return; if (context->Computed || context->Corrupted) { context->Corrupted = 1; return; } while (length-- && !context->Corrupted) { context->Message_Block[context->Message_Block_Index++] = (*message_array & 0xFF); context->Length_Low += 8; context->Length_Low &= 0xFFFFFFFF; if (context->Length_Low == 0) { context->Length_High++; context->Length_High &= 0xFFFFFFFF; if (context->Length_High == 0) context->Corrupted = 1; } if (context->Message_Block_Index == 64) { SHA1ProcessMessageBlock(context); } message_array++; } } /* int32_t sha1_hash(const char *source, char *lrvar){//Main SHA1Context sha; char buf[128]; SHA1Reset(&sha); SHA1Input(&sha, source, strlen(source)); if (!SHA1Result(&sha)){ printf("SHA1 ERROR: Could not compute message digest"); return -1; } else { memset(buf,0,sizeof(buf)); sprintf(buf, "%08X%08X%08X%08X%08X", sha.Message_Digest[0],sha.Message_Digest[1], sha.Message_Digest[2],sha.Message_Digest[3],sha.Message_Digest[4]); //lr_save_string(buf, lrvar); return strlen(buf); } } */ char *sha1_hash(const char *source) { SHA1Context sha; char *buf; //[128]; SHA1Reset(&sha); SHA1Input(&sha, source, strlen(source)); if (!SHA1Result(&sha)) { printf("SHA1 ERROR: Could not compute message digest"); return NULL; } else { buf = (char *)malloc(128); memset(buf, 0, 128); sprintf(buf, "%08X%08X%08X%08X%08X", sha.Message_Digest[0], sha.Message_Digest[1], sha.Message_Digest[2], sha.Message_Digest[3], sha.Message_Digest[4]); //lr_save_string(buf, lrvar); //return strlen(buf); return buf; } } int32_t tolower(int32_t c) { if (c >= 'A' && c <= 'Z') { return c + 'a' - 'A'; } else { return c; } } int32_t htoi(const char s[], int32_t start, int32_t len) { int32_t i, j; int32_t n = 0; if (s[0] == '0' && (s[1] == 'x' || s[1] == 'X')) //判断是否有前导0x或者0X { i = 2; } else { i = 0; } i += start; j = 0; for (; (s[i] >= '0' && s[i] <= '9') || (s[i] >= 'a' && s[i] <= 'f') || (s[i] >= 'A' && s[i] <= 'F'); ++i) { if (j >= len) { break; } if (tolower(s[i]) > '9') { n = 16 * n + (10 + tolower(s[i]) - 'a'); } else { n = 16 * n + (tolower(s[i]) - '0'); } j++; } return n; } //==================== 加密方法BASE64 ==================== //base64编/解码用的基础字符集 const char ws_base64char[] = "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/"; /******************************************************************************* * 名称: ws_base64_encode * 功能: ascii编码为base64格式 * 参数: * bindata: ascii字符串输入 * base64: base64字符串输出 * binlength: bindata的长度 * 返回: base64字符串长度 * 说明: 无 ******************************************************************************/ int32_t ws_base64_encode(const uint8_t *bindata, char *base64, int32_t binlength) { int32_t i, j; uint8_t current; for (i = 0, j = 0; i < binlength; i += 3) { current = (bindata[i] >> 2); current &= (uint8_t)0x3F; base64[j++] = ws_base64char[(int32_t)current]; current = ((uint8_t)(bindata[i] << 4)) & ((uint8_t)0x30); if (i + 1 >= binlength) { base64[j++] = ws_base64char[(int32_t)current]; base64[j++] = '='; base64[j++] = '='; break; } current |= ((uint8_t)(bindata[i + 1] >> 4)) & ((uint8_t)0x0F); base64[j++] = ws_base64char[(int32_t)current]; current = ((uint8_t)(bindata[i + 1] << 2)) & ((uint8_t)0x3C); if (i + 2 >= binlength) { base64[j++] = ws_base64char[(int32_t)current]; base64[j++] = '='; break; } current |= ((uint8_t)(bindata[i + 2] >> 6)) & ((uint8_t)0x03); base64[j++] = ws_base64char[(int32_t)current]; current = ((uint8_t)bindata[i + 2]) & ((uint8_t)0x3F); base64[j++] = ws_base64char[(int32_t)current]; } base64[j] = '\0'; return j; } /******************************************************************************* * 名称: ws_base64_decode * 功能: base64格式解码为ascii * 参数: * base64: base64字符串输入 * bindata: ascii字符串输出 * 返回: 解码出来的ascii字符串长度 * 说明: 无 ******************************************************************************/ int32_t ws_base64_decode(const char *base64, uint8_t *bindata) { int32_t i, j; uint8_t k; uint8_t temp[4]; for (i = 0, j = 0; base64[i] != '\0'; i += 4) { memset(temp, 0xFF, sizeof(temp)); for (k = 0; k < 64; k++) { if (ws_base64char[k] == base64[i]) temp[0] = k; } for (k = 0; k < 64; k++) { if (ws_base64char[k] == base64[i + 1]) temp[1] = k; } for (k = 0; k < 64; k++) { if (ws_base64char[k] == base64[i + 2]) temp[2] = k; } for (k = 0; k < 64; k++) { if (ws_base64char[k] == base64[i + 3]) temp[3] = k; } bindata[j++] = ((uint8_t)(((uint8_t)(temp[0] << 2)) & 0xFC)) | ((uint8_t)((uint8_t)(temp[1] >> 4) & 0x03)); if (base64[i + 2] == '=') break; bindata[j++] = ((uint8_t)(((uint8_t)(temp[1] << 4)) & 0xF0)) | ((uint8_t)((uint8_t)(temp[2] >> 2) & 0x0F)); if (base64[i + 3] == '=') break; bindata[j++] = ((uint8_t)(((uint8_t)(temp[2] << 6)) & 0xF0)) | ((uint8_t)(temp[3] & 0x3F)); } return j; } /******************************************************************************* * 名称: ws_buildRespondShakeKey * 功能: server端在接收client端的key后,构建回应用的key * 参数: * acceptKey: 来自客户端的key字符串 * acceptKeyLen: 长度 * respondKey: 在 acceptKey 之后加上 GUID, 再sha1哈希, 再转成base64得到 respondKey * 返回: respondKey的长度(肯定比acceptKey要长) * 说明: 无 ******************************************************************************/ int32_t ws_buildRespondShakeKey(char *acceptKey, uint32_t acceptKeyLen, char *respondKey) { char *clientKey; char *sha1DataTemp; char *sha1Data; int32_t i, n; const char GUID[] = "258EAFA5-E914-47DA-95CA-C5AB0DC85B11"; uint32_t GUIDLEN; if (acceptKey == NULL) return 0; GUIDLEN = sizeof(GUID); clientKey = (char *)calloc(acceptKeyLen + GUIDLEN + 10, sizeof(char)); memset(clientKey, 0, (acceptKeyLen + GUIDLEN + 10)); memcpy(clientKey, acceptKey, acceptKeyLen); memcpy(&clientKey[acceptKeyLen], GUID, GUIDLEN); clientKey[acceptKeyLen + GUIDLEN] = '\0'; sha1DataTemp = sha1_hash(clientKey); n = strlen((const char *)sha1DataTemp); sha1Data = (char *)calloc(n / 2 + 1, sizeof(char)); memset(sha1Data, 0, n / 2 + 1); for (i = 0; i < n; i += 2) sha1Data[i / 2] = htoi(sha1DataTemp, i, 2); n = ws_base64_encode((const uint8_t *)sha1Data, (char *)respondKey, (n / 2)); free(sha1DataTemp); free(sha1Data); free(clientKey); return n; } /******************************************************************************* * 名称: ws_buildHttpRespond * 功能: 构建server端回复client连接请求的http协议 * 参数: * acceptKey: 来自client的握手key * acceptKeyLen: 长度 * package: 存储 * 返回: 无 * 说明: 无 ******************************************************************************/ void ws_buildHttpRespond(char *acceptKey, uint32_t acceptKeyLen, char *package) { const char httpDemo[] = "HTTP/1.1 101 Switching Protocols\r\n" "Upgrade: websocket\r\n" "Server: Microsoft-HTTPAPI/2.0\r\n" "Connection: Upgrade\r\n" "Sec-WebSocket-Accept: %s\r\n" "%s\r\n\r\n"; //时间打包待续, 格式如 "Date: Tue, 20 Jun 2017 08:50:41 CST\r\n" time_t now; struct tm *tm_now; char timeStr[256] = {0}; char respondShakeKey[256] = {0}; //构建回应的握手key ws_buildRespondShakeKey(acceptKey, acceptKeyLen, respondShakeKey); //构建回应时间字符串 time(&now); tm_now = localtime(&now); strftime(timeStr, sizeof(timeStr), "Date: %a, %d %b %Y %T %Z", tm_now); //组成回复信息 sprintf(package, httpDemo, respondShakeKey, timeStr); //printf("package is %s\n", package); } /******************************************************************************* * 名称: ws_responseClient * 功能: 服务器回复客户端的连接请求, 以建立websocket连接 * 参数: * fd: 连接控制符 * data: 接收到来自客户端的数据(内含http连接请求) * dataLen: * path: path匹配检查,不用可以置NULL * 返回: >0 建立websocket连接成功 <=0 建立websocket连接失败 * 说明: 无 ******************************************************************************/ int ws_responseClient(int fd, char *data, char *path) //int ws_responseClient(int fd, char *data, int dataLen, char *path) { char *keyOffset; int32_t ret; char recvShakeKey[512] = {0}; char respondPackage[1024] = {0}; //path检查 if (path && !strstr((char *)data, path)) return -1; //获取握手key if (!(keyOffset = strstr((char *)data, "Sec-WebSocket-Key: "))) return -1; //获取握手key keyOffset += strlen("Sec-WebSocket-Key: "); sscanf((const char *)keyOffset, "%s", recvShakeKey); ret = strlen((const char *)recvShakeKey); if (ret < 1) return -1; //创建回复key ws_buildHttpRespond(recvShakeKey, (uint32_t)ret, respondPackage); //printf("response is %s\n", respondPackage); return send(fd, respondPackage, strlen((const char *)respondPackage), MSG_NOSIGNAL); } unsigned char buf[BUFFER_SIZE]; void et(struct epoll_event* events, int number, int epollfd, int listenfd) { } int setnonblocking(int fd) { int old_option = fcntl(fd, F_GETFL); int new_option = old_option | O_NONBLOCK; fcntl( fd, F_SETFL, new_option); return old_option; } void addfd(int epollfd, int fd, bool enable_et) { struct epoll_event event; event.data.fd = fd; event.events = EPOLLIN; if(enable_et) event.events |= EPOLLET; epoll_ctl(epollfd, EPOLL_CTL_ADD, fd, &event); setnonblocking( fd ); } int main(int argc, char** argv) { if( argc != 2) { printf("Usage: ./server_chat port\n"); return 1; } printf("abc's sha1 is %s\n", sha1_hash("abc")); const char* ip = "180.76.157.1"; //argv[1]; int port = atoi(argv[1]); int ret = 0; struct sockaddr_in address; struct servent* pse; struct protoent* ppe; bzero(&address, sizeof(address)); address.sin_family = AF_INET; address.sin_addr.s_addr = INADDR_ANY; address.sin_port = htons(port); ppe = getprotobyname("tcp") ; int listenfd = socket(PF_INET, SOCK_STREAM, ppe->p_proto); ret = bind(listenfd, (struct sockaddr* )&address, sizeof(address) ); if(ret == -1) { printf("bind error"); return -1; } ret = listen(listenfd, 5); if(ret == -1) { printf("listen error"); return -1; } struct epoll_event events[MAX_EVENT_NUMBER]; int epollfd = epoll_create(5); if(epollfd == -1) { printf("epoll_create error"); return -1; } addfd(epollfd, listenfd, true); while(1) { int number = epoll_wait(epollfd, events, MAX_EVENT_NUMBER, -1); if(number < 0) { printf("epoll_wait failure\n"); break; } //et(events, number, epollfd, listenfd); for(int i = 0; i < number; i++) { int sockfd = events[i].data.fd; if(sockfd == listenfd) { struct sockaddr_in client_address; socklen_t client_addrlength = sizeof(client_address); int connfd = accept(listenfd, (struct sockaddr*) &client_address, &client_addrlength); addfd(epollfd, connfd, true); } else if(events[i].events & EPOLLIN) { printf("EPOLLIN triggered once.\n"); memset(buf, 0, BUFFER_SIZE); int begin = 0; int amount = 0; while(1) { RECV_DATA: int ret = recv(sockfd, buf+amount, BUFFER_SIZE-1, 0); if(ret < 0) { if( errno==EAGAIN || errno == EWOULDBLOCK ) { printf("error EAGAIN or EWOULDBLOCK\n"); break; } else { close(sockfd); break; } } else if(ret == 0) { close(sockfd); } else { printf("get %d bytes of content\n", ret); //printf("get %d bytes of content:%s\n", ret, buf); amount += ret; if(amount > BUFFER_SIZE) { printf("buffer maybe overflowed\n"); unsigned char tmpbuf[2]; tmpbuf[0] = 0x88; tmpbuf[1] = 0x0; int ret2 = send(sockfd, tmpbuf, 2, 0); printf("send %d bytes.\n", ret2); } } } //analyze the packet if(amount > 0) { if(strstr((char*)buf, "HTTP")) ws_responseClient(sockfd, (char*)buf, (char*)"/"); else//buf amount { int state = 0; do{ state = try_analyze_buffer(buf, &begin, amount, sockfd); if(state == -1) goto RECV_DATA; } while(state == 1); } } } else { printf("something else happened.\n"); } }//for } close(listenfd); return 0; } typedef struct{ string user_name; int main_fd; }main_fd_s; vector vec_main; typedef struct{ string user_name; int master_fd; }master_fd_s; vector vec_master; typedef struct{ string user_name; string peer_name; int user_fd; int peer_fd; //state }user_fd_s; vector vec_user; /* typedef struct{ int user_fd; int peer_fd; }fd_s; vector vec_fd; */ void remove_main_fd_entry(int sockfd) { int i; for(i = 0 ; i< vec_main.size(); i++) { if(vec_main[i].main_fd == sockfd) { vec_main.erase(vec_main.begin()+i); i--; } } for(i=0; i < vec_main.size();i++) cout << "main_fd:" << vec_main[i].user_name << vec_main[i].main_fd << endl; } void remove_main_fd_entry_2(char* name) { int i; for(i = 0 ; i< vec_main.size(); i++) { if(vec_main[i].user_name == name) { vec_main.erase(vec_main.begin()+i); i--; } } for(i=0; i < vec_main.size();i++) cout << "main_fd:" << vec_main[i].user_name << vec_main[i].main_fd << endl; } void remove_master_fd_entry(int sockfd) { int i; for(i = 0 ; i< vec_master.size(); i++) { if(vec_master[i].master_fd == sockfd) { vec_master.erase(vec_master.begin()+i); i--; } } for(i=0; i < vec_master.size();i++) cout << "master_fd:" << vec_master[i].user_name << vec_master[i].master_fd << endl; } void remove_master_fd_entry_2(char* name) { int i; for(i = 0 ; i< vec_master.size(); i++) { if(vec_master[i].user_name == name) { vec_master.erase(vec_master.begin()+i); i--; } } for(i=0; i < vec_master.size();i++) cout << "master_fd:" << vec_master[i].user_name << vec_master[i].master_fd << endl; } void remove_user_fd_entry(int sockfd) { int i; for(i = 0 ; i< vec_user.size(); i++) { //FIXME: if(vec_user[i].user_fd == sockfd) { vec_user.erase(vec_user.begin()+i); i--; } } for(i = 0 ; i< vec_user.size(); i++) { //FIXME: if(vec_user[i].peer_fd == sockfd) { vec_user.erase(vec_user.begin()+i); i--; } } } void remove_user_fd_entry_2(char* name) { int i; for(i = 0 ; i< vec_user.size(); i++) { //FIXME: if(vec_user[i].user_name == name) { vec_user.erase(vec_user.begin()+i); i--; } } for(i = 0 ; i< vec_user.size(); i++) { //FIXME: if(vec_user[i].peer_name == name) { vec_user.erase(vec_user.begin()+i); i--; } } } void register_main_fd(char* name, int sockfd) { main_fd_s t; t.user_name = name; t.main_fd = sockfd; vec_main.push_back(t); for(int i=0; i < vec_main.size();i++) cout << "main_fd" << vec_main[i].user_name << vec_main[i].main_fd << endl; } void register_master_fd(char* name, int sockfd) { master_fd_s t; t.user_name = name; t.master_fd = sockfd; vec_master.push_back(t); for(int i=0; i < vec_master.size();i++) cout << "master_fd" << vec_master[i].user_name << vec_master[i].master_fd << endl; } void get_names(char* sender_name, char* recver_name, char* buf) { int i; i =0; while(buf[i]!=' ') { if(buf[i]=='\n') break; sender_name[i] = buf[i]; i++; } char* p = strstr(buf, "to "); p+=3; i = 0; while(*p != ':') { if(*p=='\n') break; recver_name[i++] = *p++; } printf("sender:%s, recver:%s\n", sender_name, recver_name); } int find_fd(char* sender_name, char* recver_name, int sockfd) { int i,j; for(i=0; i < vec_user.size();i++) cout << "vec_user" << vec_user[i].user_name << vec_user[i].user_fd << vec_user[i].peer_name << vec_user[i].peer_fd << endl; for(i = 0 ; i< vec_user.size(); i++) { if(vec_user[i].user_name == sender_name && vec_user[i].peer_name == recver_name) break; } if(i == vec_user.size()) { user_fd_s t,t2; t.user_name = sender_name; t.peer_name = recver_name; t.user_fd = sockfd; t.peer_fd = 0; vec_user.push_back(t); t2.user_name = recver_name; t2.peer_name = sender_name; t2.peer_fd = sockfd; t2.user_fd = 0; vec_user.push_back(t2); //return master_fd of peer_name for(j = 0; j < vec_master.size(); j++) { if(vec_master[j].user_name == recver_name) break; } if(j < vec_master.size()) { printf("1 return %d master_fd.\n",j ); return vec_master[j].master_fd; } else { //return main_fd for(j = 0; j < vec_main.size(); j++) { if(vec_main[j].user_name == recver_name) break; } if(j < vec_main.size()) { printf("3 return %d main_fd.\n",j ); return vec_main[j].main_fd; } else { printf("find fd error.\n"); return -1; } } } else if(vec_user[i].peer_fd > 0) { if(vec_user[i].user_fd == 0) vec_user[i].user_fd = sockfd; for(j = 0; j < vec_user.size(); j++) { if(vec_user[j].user_name == recver_name && vec_user[j].peer_name == sender_name) break; } if(j < vec_user.size()) { //if(vec_user[i].user_fd == 0) // vec_user[i].user_fd = sockfd; if(vec_user[j].peer_fd == 0) vec_user[j].peer_fd = sockfd; } printf("return user %d peer_fd.\n", i); return vec_user[i].peer_fd; } else if(vec_user[i].peer_fd == 0) { for(j = 0; j < vec_master.size(); j++) { if(vec_master[j].user_name == recver_name) break; } if(j < vec_master.size()) { printf("2 return %d master_fd.\n",j ); return vec_master[j].master_fd; } else { //return main_fd for(j = 0; j < vec_main.size(); j++) { if(vec_main[j].user_name == recver_name) break; } if(j < vec_main.size()) { printf("4 return %d main_fd.\n",j ); return vec_main[j].main_fd; } else { printf("find fd error.\n"); return -1; } } } } int try_analyze_buffer(unsigned char* buffer, int* p_begin, int in_amount, int sockfd) { printf("looking at %p,begin:%d,amount:%d; \n", buffer, *p_begin, in_amount); int amount = in_amount - *p_begin; if (amount < 2) { return -1; } unsigned char* buf = buffer + *p_begin; uint8_t FIN = buf[0] & 0x80; uint8_t OPCODE = buf[0] & 0x0F; uint8_t MASK = buf[1] & 0x80; uint8_t MASKS[4]; uint32_t payload_len = buf[1] & 0x7F; unsigned long long pay_len = 0; printf("OPCODE:%d, MASK:%d, payload_len:%d\n", OPCODE,MASK,payload_len); int payload_begin = 0; long long len = 0; if(payload_len < 126) { len = 2+(MASK?4:0)+payload_len; if( amount < len) return -1; //pay_len = payload_len; if(MASK){ MASKS[0] = buf[2]; MASKS[1] = buf[3]; MASKS[2] = buf[4]; MASKS[3] = buf[5]; } payload_begin = 2+(MASK?4:0); for(int i = 0, j =0 ; i < payload_len; i++,j++) { j = j%4; buf[payload_begin+i] ^= MASKS[j]; if(OPCODE==1 || OPCODE ==0x2) { printf("%d: %c, 0x%x\n", i, (char)buf[payload_begin+i], buf[payload_begin+i]); } } buf[payload_begin - 1] = payload_len; buf[payload_begin - 2] = FIN | (OPCODE==0x9? 0xA:OPCODE); } else if(payload_len == 126) { if(amount < 4) return -1; pay_len = ( (uint32_t)(buf[2]<<8)+ buf[3] ); len = 2+2+(MASK?4:0)+( (uint32_t)(buf[2]<<8)+ buf[3] ); if(amount < len) return -1; if(MASK){ MASKS[0] = buf[4]; MASKS[1] = buf[5]; MASKS[2] = buf[6]; MASKS[3] = buf[7]; } payload_begin = 4+(MASK?4:0); for(int i = 0, j =0 ; i < pay_len; i++,j++) { j = j%4; buf[payload_begin+i] ^= MASKS[j]; if(OPCODE==1) { printf("%d: %c, 0x%x\n", i, (char)buf[payload_begin+i], buf[payload_begin+i]); } } buf[payload_begin - 1] = pay_len & 0xFF; buf[payload_begin - 2] = (pay_len & 0xFF00) >> 8; buf[payload_begin - 3] = 126; buf[payload_begin - 4] = FIN | OPCODE; } else if(payload_len == 127) { if(amount < 10) return -1; len = 2+8+(MASK?4:0); len += ((unsigned long long)buf[2]<<56); len += ((unsigned long long)buf[3]<<48); len += ((unsigned long long)buf[4]<<40); len += ((unsigned long long)buf[5]<<32); len += ((unsigned long long)buf[6]<<24); len += ((unsigned long long)buf[7]<<16); len += ((unsigned long long)buf[8]<<8); len += ((unsigned long long)buf[9]<<0); if(amount < len) return -1; pay_len = len - 2-8 - (MASK?4:0); if(MASK){ MASKS[0] = buf[10]; MASKS[1] = buf[11]; MASKS[2] = buf[12]; MASKS[3] = buf[13]; } payload_begin = 10+(MASK?4:0); for(int i = 0, j =0 ; i < pay_len; i++,j++) { j = j%4; buf[payload_begin+i] ^= MASKS[j]; if(OPCODE==1) { if(i > pay_len - 16) printf("%d: %c, 0x%x\n", i, (char)buf[payload_begin+i], buf[payload_begin+i]); } } buf[payload_begin - 1] = pay_len & 0xFF; buf[payload_begin - 2] = (pay_len & 0xFF00) >> 8; buf[payload_begin - 3] = (pay_len & 0xFF0000) >> 16; buf[payload_begin - 4] = (pay_len & 0xFF000000) >> 24; buf[payload_begin - 5] = (pay_len & 0xFF00000000) >> 32; buf[payload_begin - 6] = (pay_len & 0xFF0000000000) >> 40; buf[payload_begin - 7] = (pay_len & 0xFF000000000000) >> 48; buf[payload_begin - 8] = (pay_len & 0xFF00000000000000) >> 56; buf[payload_begin - 9] = 127; buf[payload_begin - 10] = FIN | OPCODE; } int ret2; if(OPCODE == 0x1 ||OPCODE == 0x0 || OPCODE == 0x2 || OPCODE == 0x9) { int amount_out = 0; int amount_sent = 0; unsigned char* buf_out; if(payload_len < 126) { buf_out = buf+payload_begin -2; amount_out = 2+payload_len; } else if(payload_len == 126) { buf_out = buf+payload_begin -4; amount_out = 4+pay_len; } else if(payload_len == 127) { buf_out = buf+payload_begin -10; amount_out = 10+pay_len; } if(!strncmp((char*)buf+payload_begin,"@CTRL:I am ",11)) { char name[126]; memset(name, 0, sizeof(name)); strncpy(name, (char*)buf+payload_begin+11, payload_len-11); printf("%s login1\n", name); register_main_fd(name, sockfd); //notice all other clients(?) return 0; } if(!strncmp((char*)buf+payload_begin,"I am ",5)) { char name[126]; memset(name, 0, sizeof(name)); strncpy(name, (char*)buf+payload_begin+5, payload_len-5); printf("%s login2\n", name); register_master_fd(name, sockfd); //notice all other clients(?) for(int i=0; i < vec_master.size()-1;i++) { printf("broadcasting to %d\n", vec_master[i].master_fd); ret2 = send(vec_master[i].master_fd , buf_out+amount_sent, amount_out-amount_sent, 0); if(ret2 < amount_out) printf("not sufficient sending\n"); } return 0; } if(!strncmp((char*)buf+payload_begin,"@LOGOUT",7)) { char name[126]; memset(name, 0, sizeof(name)); if(!strncmp((char*)buf+payload_begin,"@LOGOUT_MAIN:",13)) { strncpy(name, (char*)buf+payload_begin+13, payload_len-13); printf("%s logout at 1\n", name); remove_user_fd_entry_2(name); remove_master_fd_entry_2(name); remove_main_fd_entry_2(name); //notice all other clients(?) FIXME /* for(int i=0; i < vec_main.size();i++) { if(vec_main[i].user_name != name) { printf("broadcasting logout 1 to %d\n", vec_main[i].main_fd); ret2 = send(vec_main[i].main_fd , buf_out+amount_sent, amount_out-amount_sent, 0); if(ret2 < amount_out) printf("not sufficient sending when logout 1.\n"); } } */ for(int i=0; i < vec_master.size();i++) { if(vec_master[i].user_name != name) { printf("broadcasting logout 2 to %d\n", vec_master[i].master_fd); ret2 = send(vec_master[i].master_fd , buf_out+amount_sent, amount_out-amount_sent, 0); if(ret2 < amount_out) printf("not sufficient sending when logout 2.\n"); } } } else if(!strncmp((char*)buf+payload_begin,"@LOGOUT_MASTER:",15)) { strncpy(name, (char*)buf+payload_begin+15, payload_len-15); printf("%s logout at 2\n", name); remove_user_fd_entry_2(name); remove_master_fd_entry_2(name); remove_main_fd_entry_2(name); //notice all other clients(?) FIXME /* for(int i=0; i < vec_main.size();i++) { if(vec_main[i].user_name != name) { printf("broadcasting logout 1 to %d\n", vec_main[i].main_fd); ret2 = send(vec_main[i].main_fd , buf_out+amount_sent, amount_out-amount_sent, 0); if(ret2 < amount_out) printf("not sufficient sending when logout 1.\n"); } } */ for(int i=0; i < vec_master.size();i++) { if(vec_master[i].user_name != name) { printf("broadcasting logout 2 to %d\n", vec_master[i].master_fd); ret2 = send(vec_master[i].master_fd , buf_out+amount_sent, amount_out-amount_sent, 0); if(ret2 < amount_out) printf("not sufficient sending when logout 2.\n"); } } } return 0; } char sender_name[126]; char recver_name[126]; memset(sender_name, 0, sizeof(sender_name)); memset(recver_name, 0, sizeof(recver_name)); get_names(sender_name, recver_name,(char*)buf+payload_begin); //int fd = sockfd; int fd = find_fd(sender_name, recver_name, sockfd); printf("find_fd return %d\n", fd); while(amount_sent < amount_out) { printf("sent:%d, out:%d\n", amount_sent, amount_out); //ret2 = send(sockfd, buf_out+amount_sent, amount_out-amount_sent, 0); ret2 = send(fd, buf_out+amount_sent, amount_out-amount_sent, 0); if(ret2>0) amount_sent += ret2; else if(ret2<0) continue; } printf("send %d/%d bytes.payload_begin:%d, payload_len:%d,pay_len:%lld.\n", amount_sent,amount_out, payload_begin, payload_len, pay_len); fflush(stdout); } else if(OPCODE == 0x8) { unsigned char tmpbuf[2]; tmpbuf[0] = 0x88; tmpbuf[1] = 0x0; // sockfd ? int ret2 = send(sockfd, tmpbuf, 2, 0); if(ret2 != 2) printf("send %d/2 bytes error.\n", ret2); //TODO: remove fd from epoll() else { printf("websocket close connection.\n"); close(sockfd); //TODO: remove fd from vec[] remove_user_fd_entry(sockfd); remove_master_fd_entry(sockfd); remove_main_fd_entry(sockfd); } } printf("amount: %d, len: %lld\n", amount, len); if(amount == len) { printf("a complete frame.\n"); } else if(len > amount) { printf("incorrect amount and len?\n"); } else if(len < amount) { printf("more frame?\n"); *p_begin += len; //int state2 = try_analyze_buffer(buffer, p_begin, in_amount, sockfd); // return state2; return 1; } return 0; } /* buf *p_begin amount buf */
测试用了selenium/webdriver和python 脚本：python test4.py
测试脚本：
test4.py:
#!coding=utf-8
from selenium import webdriver
import time
from selenium.webdriver.support.wait import WebDriverWait
from selenium.webdriver.support import expected_conditions as EC
from selenium.common.exceptions import UnexpectedAlertPresentException
chromedriver = "C:\Program Files (x86)\Google\Chrome\Application\chromedriver.exe"
driver = webdriver.Chrome(chromedriver)
driver.get("http://localhost/clear_users.php")
driver.get("http://localhost/-1.php")
window_1=driver.current_window_handle
js='window.open("http://localhost/-1.php")'
driver.execute_script(js)
window_2=driver.current_window_handle
js='window.open("http://localhost/-1.php")'
driver.execute_script(js)
window_3=driver.current_window_handle
js='window.open("http://localhost/-1.php")'
driver.execute_script(js)
window_4=driver.current_window_handle
js='window.open("http://localhost/-1.php")'
driver.execute_script(js)
window_5=driver.current_window_handle
js='window.open("http://localhost/-1.php")'
driver.execute_script(js)
window_6=driver.current_window_handle
js='window.open("http://localhost/-1.php")'
driver.execute_script(js)
window_7=driver.current_window_handle
js='window.open("http://localhost/-1.php")'
driver.execute_script(js)
window_8=driver.current_window_handle
#uu=0
#allhandles=driver.window_handles
#for handle in allhandles:
# uu=uu+1
# driver.switch_to.window(handle)
# time.sleep(3)
#driver.switch_to.window(driver.window_handles[-1])
#time.sleep(1)
#############################################
#
# [0][7][6][5][4][3][2][1]
#
#
#
#
#
##
driver.switch_to.window(driver.window_handles[0])
driver.find_element_by_id("id_text1").send_keys("a")
time.sleep(1)
driver.find_element_by_id("id_submit1").click()
time.sleep(1)
driver.find_element_by_id("id_submit2").click()
time.sleep(1)
driver.switch_to.window(driver.window_handles[0])
time.sleep(1)
driver.close()
#driver.switch_to.window(driver.window_handles[0])
#time.sleep(1)
#result = EC.alert_is_present()(driver)
#if result:
# print(result.text)
# result.accept()
#else:
# print("alert未弹出2")
#############################################
#
# [0][7][6][5][4][3][2][1]
#
#
#
#
#
## ##############
time.sleep(1)
driver.switch_to.window(driver.window_handles[6])
driver.find_element_by_id("id_text1").send_keys("b")
time.sleep(1)
driver.find_element_by_id("id_submit1").click()
time.sleep(1)
driver.find_element_by_id("id_submit2").click()
time.sleep(1)
driver.switch_to.window(driver.window_handles[6])
time.sleep(1)
driver.close()
## ##############
time.sleep(1)
driver.switch_to.window(driver.window_handles[5])
driver.find_element_by_id("id_text1").send_keys("c")
time.sleep(1)
driver.find_element_by_id("id_submit1").click()
time.sleep(1)
driver.find_element_by_id("id_submit2").click()
time.sleep(1)
driver.switch_to.window(driver.window_handles[5])
time.sleep(1)
driver.close()
## ##############
time.sleep(1)
driver.switch_to.window(driver.window_handles[4])
driver.find_element_by_id("id_text1").send_keys("d")
time.sleep(1)
driver.find_element_by_id("id_submit1").click()
time.sleep(1)
driver.find_element_by_id("id_submit2").click()
time.sleep(1)
driver.switch_to.window(driver.window_handles[4])
time.sleep(1)
driver.close()
## ##############
time.sleep(1)
driver.switch_to.window(driver.window_handles[3])
driver.find_element_by_id("id_text1").send_keys("e")
time.sleep(1)
driver.find_element_by_id("id_submit1").click()
time.sleep(1)
driver.find_element_by_id("id_submit2").click()
time.sleep(1)
driver.switch_to.window(driver.window_handles[3])
time.sleep(1)
driver.close()
## ##############
time.sleep(1)
driver.switch_to.window(driver.window_handles[2])
driver.find_element_by_id("id_text1").send_keys("f")
time.sleep(1)
driver.find_element_by_id("id_submit1").click()
time.sleep(1)
driver.find_element_by_id("id_submit2").click()
time.sleep(1)
driver.switch_to.window(driver.window_handles[2])
time.sleep(1)
driver.close()
## ##############
time.sleep(1)
driver.switch_to.window(driver.window_handles[1])
driver.find_element_by_id("id_text1").send_keys("g")
time.sleep(1)
driver.find_element_by_id("id_submit1").click()
time.sleep(1)
driver.find_element_by_id("id_submit2").click()
time.sleep(1)
driver.switch_to.window(driver.window_handles[1])
time.sleep(1)
driver.close()
## ##############
time.sleep(1)
driver.switch_to.window(driver.window_handles[0])
driver.find_element_by_id("id_text1").send_keys("h")
time.sleep(1)
driver.find_element_by_id("id_submit1").click()
time.sleep(1)
driver.find_element_by_id("id_submit2").click()
time.sleep(1)
driver.switch_to.window(driver.window_handles[0])
time.sleep(1)
driver.close()
######################################################################################
driver.switch_to.window(driver.window_handles[-1])
time.sleep(1)
radio_user=driver.find_elements_by_name("radio_users")
radio_user[0].click()
time.sleep(2)
driver.find_element_by_id("id_text2").send_keys("hha1")
time.sleep(2)
driver.find_element_by_id("id_send_1").click()
time.sleep(2)
driver.switch_to.window(driver.window_handles[0])
time.sleep(2)
driver.switch_to.window(driver.window_handles[7])
time.sleep(2)
radio_user=driver.find_elements_by_name("radio_users")
radio_user[1].click()
time.sleep(2)
driver.find_element_by_id("id_text4").send_keys("hhb1")
time.sleep(2)
driver.find_element_by_id("id_send_2").click()
time.sleep(2)
driver.switch_to.window(driver.window_handles[1])
time.sleep(2)
driver.switch_to.window(driver.window_handles[7])
time.sleep(2)
radio_user=driver.find_elements_by_name("radio_users")
radio_user[2].click()
time.sleep(2)
driver.find_element_by_id("id_text6").send_keys("hhc1")
time.sleep(2)
driver.find_element_by_id("id_send_3").click()
time.sleep(2)
driver.switch_to.window(driver.window_handles[2])
time.sleep(2)
driver.switch_to.window(driver.window_handles[7])
time.sleep(2)
radio_user=driver.find_elements_by_name("radio_users")
radio_user[3].click()
time.sleep(2)
driver.find_element_by_id("id_text8").send_keys("hhd1")
time.sleep(2)
driver.find_element_by_id("id_send_4").click()
time.sleep(2)
driver.switch_to.window(driver.window_handles[3])
time.sleep(2)
driver.switch_to.window(driver.window_handles[7])
time.sleep(2)
radio_user=driver.find_elements_by_name("radio_users")
radio_user[4].click()
time.sleep(2)
driver.find_element_by_id("id_text10").send_keys("hhe1")
time.sleep(2)
driver.find_element_by_id("id_send_5").click()
time.sleep(2)
driver.switch_to.window(driver.window_handles[4])
time.sleep(2)
driver.switch_to.window(driver.window_handles[7])
time.sleep(2)
radio_user=driver.find_elements_by_name("radio_users")
radio_user[5].click()
time.sleep(2)
driver.find_element_by_id("id_text12").send_keys("hhf1")
time.sleep(2)
driver.find_element_by_id("id_send_6").click()
time.sleep(2)
driver.switch_to.window(driver.window_handles[5])
time.sleep(2)
driver.switch_to.window(driver.window_handles[7])
time.sleep(2)
radio_user=driver.find_elements_by_name("radio_users")
radio_user[6].click() #should have reached max limit
time.sleep(2)
#driver.find_element_by_id("id_text14").send_keys("hhg1")
time.sleep(2)
#driver.find_element_by_id("id_send_").click()
#time.sleep(2)
driver.switch_to.window(driver.window_handles[6])
time.sleep(2)
driver.switch_to.window(driver.window_handles[7])
time.sleep(2)
result = EC.alert_is_present()(driver)
if result:
print(result.text)
result.accept()
################################
driver.switch_to.window(driver.window_handles[0])
time.sleep(2)
radio_user=driver.find_elements_by_name("radio_users")
radio_user[0].click() #should have reached max limit
time.sleep(2)
driver.find_element_by_id("id_text2").send_keys("aah1")
time.sleep(2)
driver.find_element_by_id("id_send_1").click()
time.sleep(2)
driver.switch_to.window(driver.window_handles[7])
time.sleep(2)
driver.switch_to.window(driver.window_handles[6])
time.sleep(2)
radio_user=driver.find_elements_by_name("radio_users")
radio_user[0].click()
time.sleep(2)
driver.find_element_by_id("id_text2").send_keys("ggh1")
time.sleep(2)
driver.find_element_by_id("id_send_1").click() #h should have reached max limit
time.sleep(2)
driver.switch_to.window(driver.window_handles[7])
time.sleep(2)
result = EC.alert_is_present()(driver)
if result:
print(result.text)
result.accept()
time.sleep(2)
driver.find_element_by_id("id_exit_2").click()
time.sleep(2)
result = EC.alert_is_present()(driver)
if result:
print(result.text)
result.accept()
time.sleep(2)
driver.switch_to.window(driver.window_handles[6])
time.sleep(2)
driver.find_element_by_id("id_send_1").click() #h should now have idle
time.sleep(2)
driver.switch_to.window(driver.window_handles[7])
time.sleep(2)
driver.find_element_by_id("id_submit3").click()
time.sleep(2)
result = EC.alert_is_present()(driver)
while result:
print(result.text)
result.accept()
time.sleep(2)
result = EC.alert_is_present()(driver)
#time.sleep(15)
#uu=0
#allhandles=driver.window_handles
#for handle in allhandles:
# uu=uu+1
# print(uu)
# driver.switch_to.window(handle)
# time.sleep(3)
效果如下面的GIF动画（用ScreenToGif录制，时长4分钟）：
其中用到的主要的php文件:
1.php:
用户
0) echo "".$name."
\n"; } fclose($fp); ?>
源码包在此：websocket_chat04_and_php02.zip 或者websocket_chat04_and_php03_and_css.zip
由于本人开发（特别是web开发）水平尚浅，希望更多的人可以加入进来或提出意见和建议，多多益善。
联系站长：13545246832（手机/微信）
电子邮箱：shudan75@sina.com
